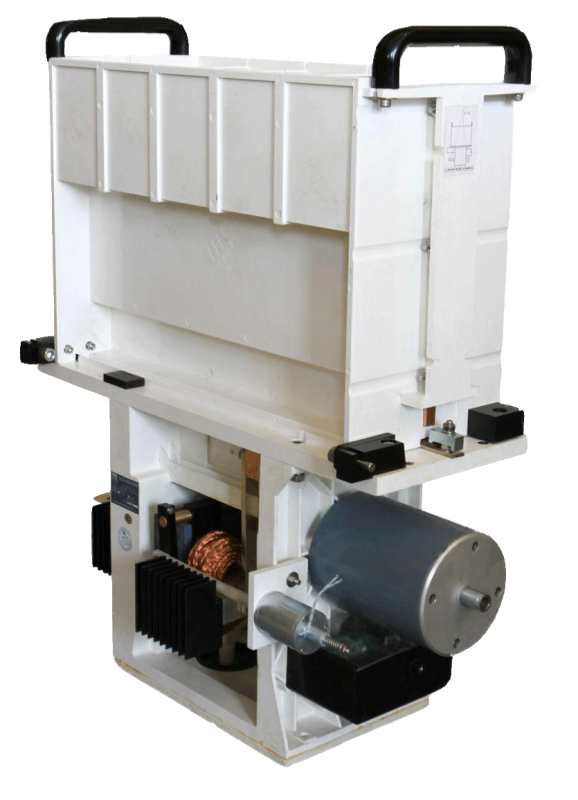

WLDS1 DC Fast Circuit Breaker
The WLDS1 is a unipolar, bidirectional DC fast circuit breaker engineered for short-circuit and overload protection in metro, light rail, tram, and industrial electric traction systems. Rated up to DC1800V and 4000A with a rated short-circuit current of 90kA/100ms, it delivers rapid fault interruption — protecting semiconductor rectifiers and traction power infrastructure before damage occurs.
Key Applications
- DC Feeder Traction Power: Protects contact wires and rails against insulation faults and short circuits. Compatible with line fault detection circuits for automatic reclosing.
- Traction Vehicles: Compact design with high shock and vibration resistance — suitable for direct installation in vehicle switchboards.
- Power Semiconductor Equipment: Current-limiting characteristics provide sensitive protection for static converter devices, interrupting fault current before it reaches steady-state values.
- DC Rotating Machinery: Ensures reliable closing during commutation intervals and immediate fault clearance with auto-reclose capability for industrial rolling mills.
Technical Specifications
| Rated Working Voltage | DC900V / DC1800V |
| Maximum Working Voltage | DC1000V / DC2000V |
| Rated Insulation Voltage | DC3000V |
| Rated Current | 4000A / 2500A |
| Rated Short-Circuit Current / Time Constant | 90kA / 100ms |
| Rated Short-Circuit Making Capacity | 128kA |
| Electrical Life | 1,000 operations |
| Mechanical Life | ≥50,000 operations |
| Coil Operating Voltage | DC24V / 48V / 110V / 220V |
| Dimensions (L×W×H) | 756 × 380 × 835 mm |
| Weight | 115 kg |
Product Highlights
- High insulation class — overvoltage category OV4
- Convenient overcurrent trip value setting
- High rated short-circuit making and breaking capacity (128kA)
- Electromagnetic closing, electrical latching — significantly reduced energy consumption
- 5 double-contact auxiliary contacts for versatile application requirements
- Low contact wear and high arc-quenching performance — suitable for C3 (heavy-duty) duty cycle
- High mechanical and electrical life; simple structure, low maintenance
Standards Compliance
- GB/T 25890.1-2010 — Railway Applications: Ground DC Switchgear, Part 1: General
- GB/T 25890.2-2010 — Railway Applications: Ground DC Switchgear, Part 2: DC Circuit Breakers
- GB/T 21413.1/2/3-2008 — Railway Applications: Rolling Stock Electrical Equipment
OEM/ODM available. Contact Wanlong Electric for custom specifications, volume pricing, and technical support.
