Introduction
When designing or upgrading an electrical distribution system, one of the most critical decisions engineers and procurement managers face is choosing between an Air Circuit Breaker (ACB) and a Molded Case Circuit Breaker (MCCB). Both protect electrical circuits from overloads and short circuits — but they serve different applications, current ranges, and installation environments.
This guide breaks down the key differences to help you make the right choice.
What Is an ACB (Air Circuit Breaker)?
An Air Circuit Breaker uses air as the arc-quenching medium. ACBs are designed for high-current applications, typically from 630A to 6300A, and are commonly installed in main distribution boards, switchgear panels, and industrial power systems.
Key features of ACBs:
- High breaking capacity (up to 100kA or more)
- Fully withdrawable or fixed mounting
- Advanced electronic trip units with adjustable protection settings
- Built-in communication interfaces (Modbus, Profibus, etc.)
- Suitable for frequent switching operations
What Is an MCCB (Molded Case Circuit Breaker)?
A Molded Case Circuit Breaker houses its components in a molded insulating case. MCCBs cover a wide current range, typically from 16A to 1600A, and are used in sub-distribution boards, motor protection, and feeder circuits.
Key features of MCCBs:
- Compact, space-saving design
- Current ratings from 16A to 1600A
- Thermal-magnetic or electronic trip units
- Available with intelligent controllers for remote monitoring
- Cost-effective for medium-current protection
ACB vs MCCB: Key Differences at a Glance
| Feature | ACB | MCCB |
|---|---|---|
| Current Range | 630A – 6300A | 16A – 1600A |
| Breaking Capacity | Up to 100kA+ | Up to 85kA |
| Arc Quenching | Air | Molded case |
| Size | Large | Compact |
| Adjustability | Highly adjustable | Limited to moderate |
| Communication | Standard (Modbus, etc.) | Optional (with controller) |
| Cost | Higher | Lower to moderate |
| Typical Application | Main distribution, switchgear | Sub-distribution, motor protection |
How to Choose: ACB or MCCB?
Use this simple decision framework:
- Choose ACB if: your load current exceeds 1600A, you need high breaking capacity, or you require advanced communication and remote control in a main switchboard.
- Choose MCCB if: your current is below 1600A, space is limited, or you need a cost-effective solution for feeder or motor protection circuits.

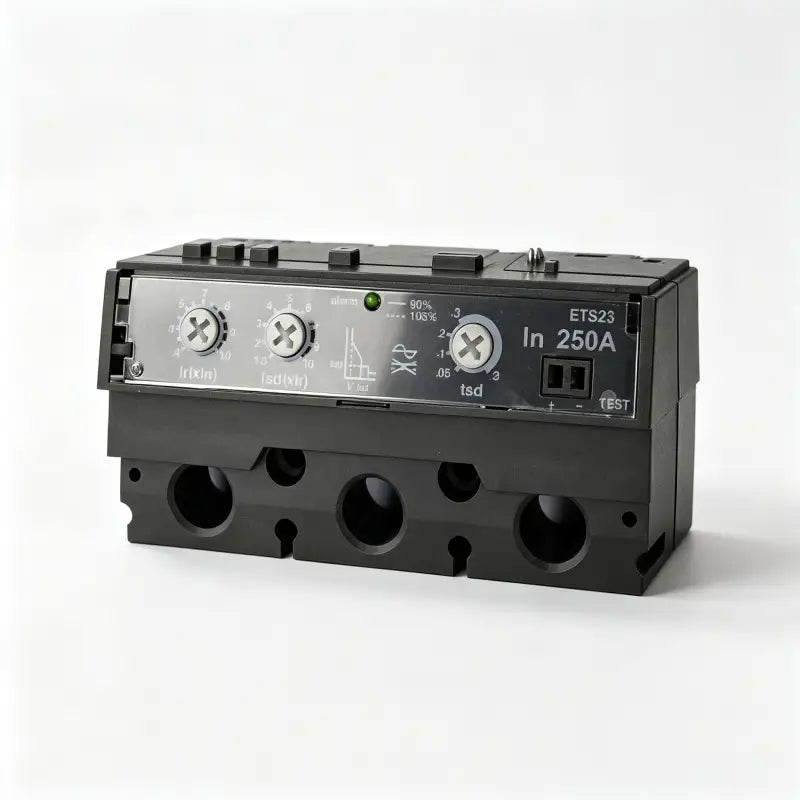

- Consider Intelligent MCCB Controllers if you want to add smart monitoring, remote tripping, or data logging to an existing MCCB installation — without replacing the breaker itself.
Wan Long Electric: Your Trusted Source for ACBs and MCCBs
At Wan Long Electric, we supply a full range of ACBs, MCCBs, and Intelligent MCCB Controllers for industrial and commercial power distribution systems. Our products are engineered for reliability, precision, and long service life.
Whether you're specifying equipment for a new project or upgrading an existing system, our technical team is ready to help you select the right solution.
Browse our full product range or contact us for a consultation.
