Description

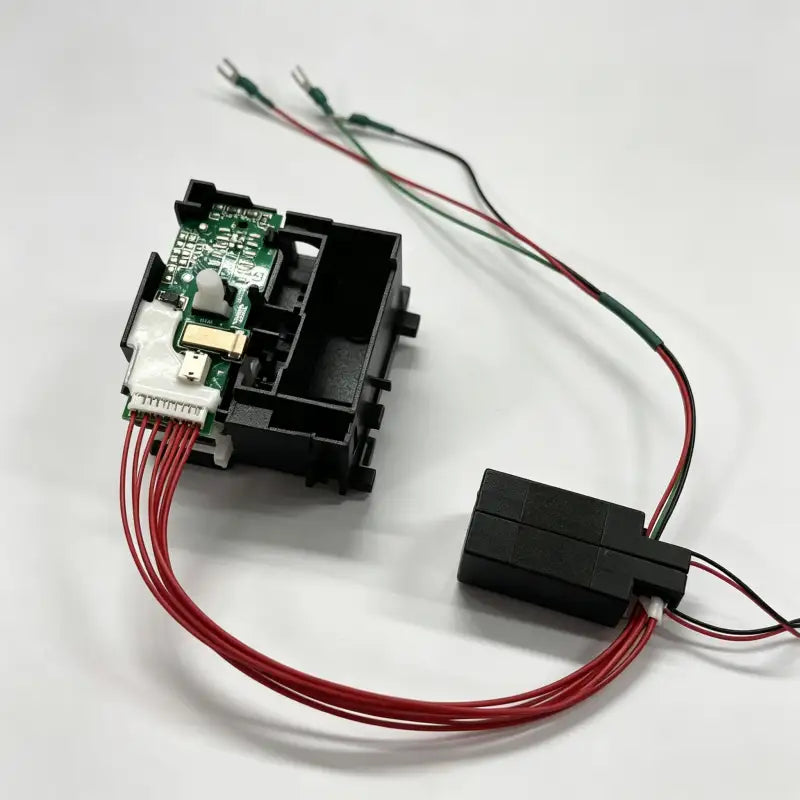

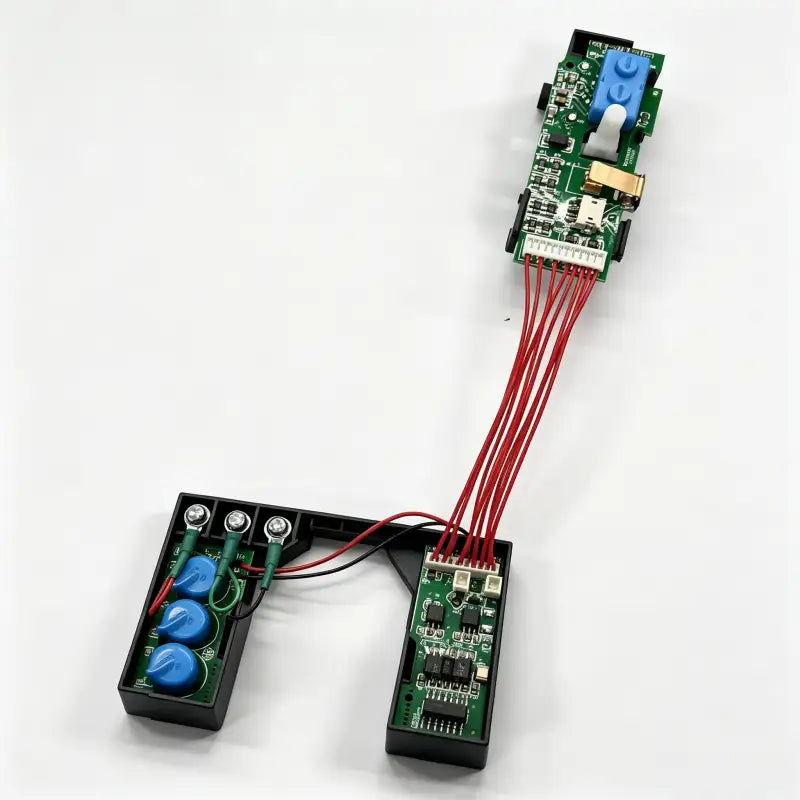

The ST130E/EA Series Intelligent Residual Current Controller is designed as the core protection module for KFM2L/3L Series Residual Current Circuit Breakers (RCCBs). Suitable for AC 50Hz systems with rated currents up to 800A, rated insulation voltage of 690V, and operating voltages up to 400V (three-phase) or 230V (single-phase).
Key Protection Functions
- AC Type Residual Current Protection
- A Type Residual Current Protection
Auxiliary Functions
- Fault Trip
- Alarm Without Trip
- Remote Shunt Release
Communication
None
User Interface
- Alarm Without Trip Module Interface
- Remote Shunt Release Module Interface
- Type I: Fixed sensitivity setting, no configuration required
- Type II / III / IV: 4-position coded switch for intuitive parameter setting
Rated Parameters
- Power Supply: Derived from MCCB main circuit — 400V (three-phase) / 230V (single-phase)
- Frame Ratings: 32A, 100A, 250A, 400A, 800A
- Residual Current Range: 30mA – 10A
Standards
GB14048.2 / IEC60947
